596 CHAPTER 16

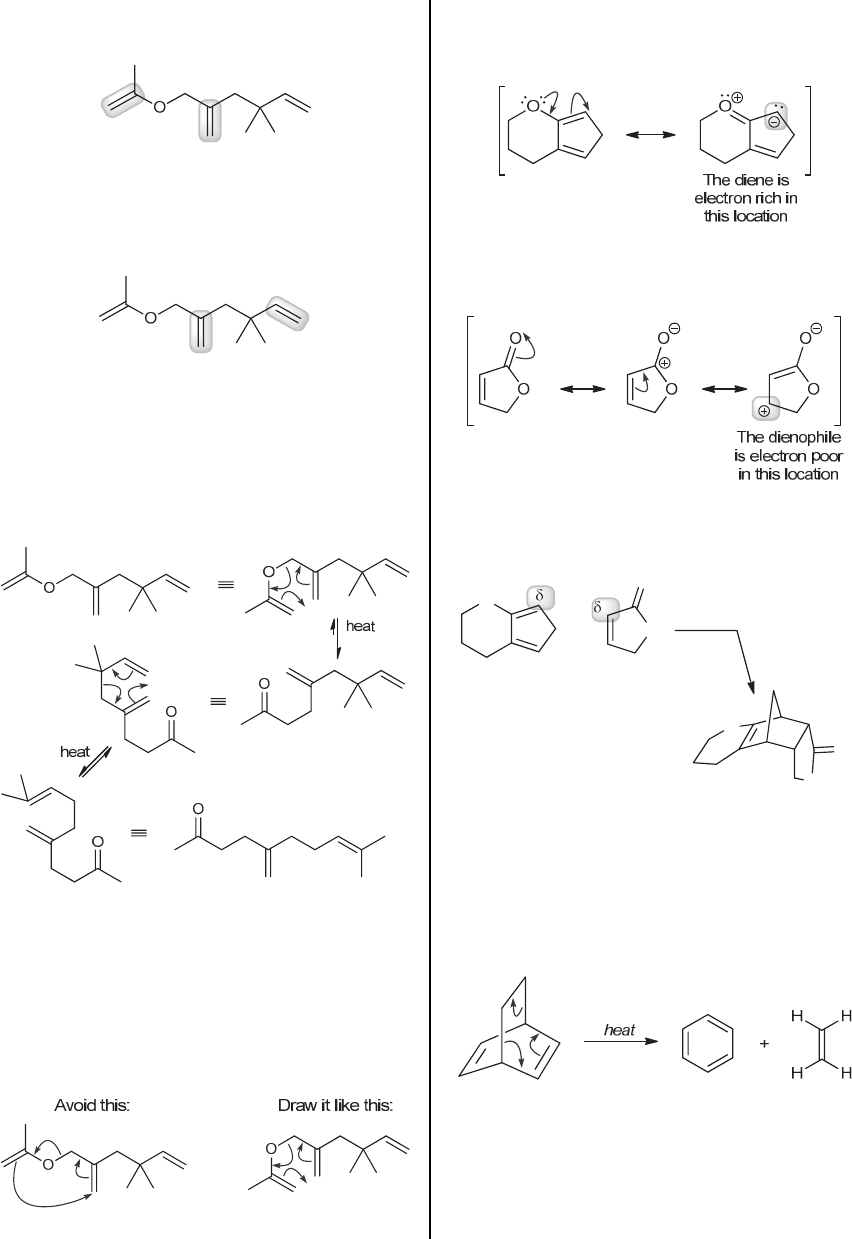

16.65. The starting material is an allylic vinylic ether, so
it can undergo a Claisen rearrangement.



Alternatively, we also note that the starting material has
two C=C bonds that are separated from each other by
exactly three  bonds, so it can undergo a Cope
rearrangement:



We will ultimately end up drawing both processes, and it
does not matter the order in which we draw these two
processes. Below, the Claisen rearrangement is drawn
first, followed by the Cope rearrangement. If instead, the
Cope rearrangement was drawn first, followed by the
Claisen rearrangement, the same product would be
obtained.



Note that for each of the sigmatropic processes above
(the Claisen rearrangement and the Cope rearrangement),
the compound is redrawn in such a way that enables us
to clearly see the motion of the electrons that cause the
reaction. You are likely to make a mistake if you try to
draw the curved arrows without first redrawing the
structure. That is, avoid doing this:


16.66. First we determine the regiochemical outcome.
The diene is electron-rich, as seen in the second
resonance structure below:



And the dienophile is electron-poor, as seen in the third
resonance structure below:



These two compounds will join in such a way that the
electron-poor center lines up with the electron-rich
center:
-
+O
O
O
O
O
O
+ En
+


Notice that the endo product is obtained, rather than the
exo product, as is expected for Diels-Alder reactions.

16.67. This transformation can be achieved via a retro
Diels-Alder reaction (shown below), which requires
elevated temperature, as described in Section 16.7.
